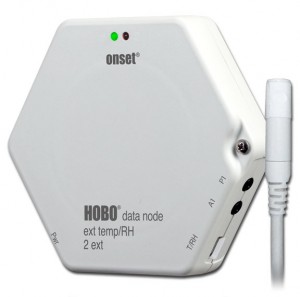

HOBO ZW Wireless Sensor Networks

A family of wireless data nodes that provide centralised monitoring of energy and environmental conditions in a building.



Key Features:

  • Centralised building performance data collection
  • Transmission of real-time data wihtin a self-healing mesh network eliminates line-of-sight issues
  • Automatically routes data back to the receiver
  • Onboard buffer memory
  • Alarm notification via email
  • HOBOnode Manager's Network Map provides at-a-glance view of your network



Measurements:

Internal or external sensor:   Temperature   -   Relative Humidity   -   AC Current

Analogue & Pulse Ports (require relevant interface cable):   0-10VDC   -   4-20mA   -   Pulse

Third party sensors (use analogue or pulse port): AC Voltage   -   Killowatts   -   Kilowatt Hours   -

CO2  -   Gauge Pressure   -   Compressed airflow   -   DC Current   -   Differential pressure   -  Water usage



Model ZW-001 ZW-003 ZW-005 ZW-006 ZW-007 ZW-008
Internal Temp 1 1
Internal RH   1
External Temp     1   1
External RH     1   1
Analogue Port     1 4 2 2
Pulse Port     1     2
Total Ports 1 2 4 4 4 4



Specifications:

  • Wireless Range: approx. 100m depending on obstructions or interference
  • Wireless data standard: IEEE 802.15.4 2.4 GHz
  • Temperature: Range -40° to 70° C; Accuracy ± 0.21° C from 0° to 50° C
  • Humidity: Range 5 to 95% RH; Accuracy ± 2.5% from 10 to 90%
  • Analogue Port: Range 0 to 2.5 VDC (expandable to 10VDC or 4-20mA with adaptors); Accuracy ±1.544 mV plus 2 % of reading (typical)
  • Pulse Port: 0 to 65,535 pulses per logging interval



A list of compatible sensors and interfaces to third party sensors can be found on the link below.
